Description :

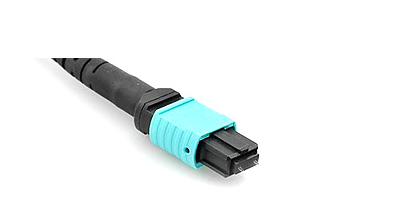

MPO / MTP - MPO / MTP B type MPO MTP female / male optical fiber patch cord
MPO optical fiber patch cord, Precise connector, Customized length, Excellent mechanical capability, insertion loss<0.2dB, Good durability and exchangeability, Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standard
Application
CATV
Active dvice termination
Telecommunication networks
Metro
Local Area Networks(LANs)
Data Processing networks
Test Equipment
Premise installations.
Wide Area Networks(WANs)
Feature
Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
Standard: Telcordia GR-326-CORE
Technical Parameter
| products name | MPO / MTP - MPO / MTP B type MPO MTP female / male optical fiber patch cord |
| mode type | multi mode |
| cable count | 12 core ( can be 4/8/12/16/24/32 core ) |
| core type | OM3-300( OM1/OM2/OM3-150/OM3-300/OM4/OM5) |
| cable color | Aqua ( can be customized according to your request ) |
| cable diameter | ( can be customized diameter ) |
| patch cord length | 5 meter ( can be customized according to your request ) |
| out jacket material | PVC ( can be PVC or LSZH ) |
| insertion loss | ≤ 0.5dB |
| return loss | ≥25 dB |
| wave length | 850/1300nm |
| core type | 50/125um |
| connector type | female |
| connector color | Aqua |
| ferrule material | plastic |
| operater temperature | -40~ +85℃ |
| cable print | standard print ( can customized ) |
| OEM/ODM | acceptable |
| warranty | 3 years after delivery |
| Delivery time | 2-15 working days ( according to your quantity )
|
Ordering options
| Boot (cable size) | Boot Color | Fiber Type | Cable number | Ferrule | Length |
| 0.9mm 2.0mm 3.0mm | Black Biege Blue Gray White Yellow | 9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 | Simplex Duplex Multi-fiber | PC APC | Customized |

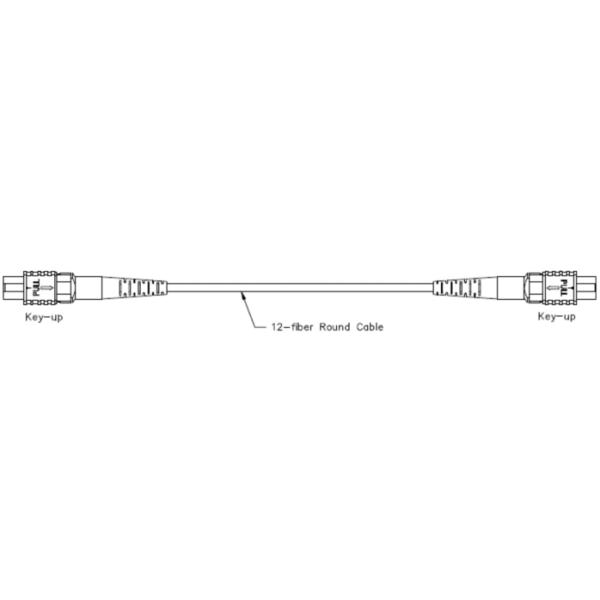

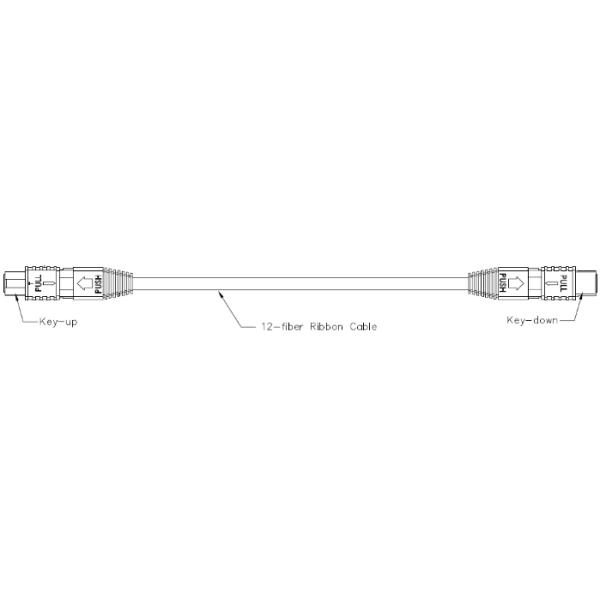

When a patch cord is constructed in a key-up/key-up configuration, the fiber arrangement on one connector
is mirrored about the vertical axis on the other connector. For example, on connector A the blue fiber is to the
left with the key up, while on connector B the blue fiber is to the right with the key up. Signals input on the left
side of connector A will be output on the right side of connector B.
Key-up/Key-up of GEZHI Patch cords Mirror Signals About the Vertical Axis
GEZHI Assembly Structure Illustration:
It have male and female connector :
Male with PIN , female without PIN
Female connector Male connector
More connector
How to order
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
