Description :
2M FC / APC mini single mode Fiber Optical Splitter WDM 0.9 / 2.0 / 3.0 mm
PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. DYSFO’ PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.
Features
1. Low Insertion Loss
2. Low Polarization Dependent Loss
3. Wide Operation Wavelength
4. Wide Operation Temperature
5. High Stability and Reliability
6. Telcordia GR-1209 and GR-1221 Compliance
7. YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)8.Good uniformity and low insertion loss
8. Excellent Mechanical
9. High Polarization Extinction Ratio & Excellent Uniformity
10. Fiber input: 0.9mm or 250μm fiber for choice
11. Fiber output: 250μm bare fiber (It is benefit for splicing)G.657A Fiber
12. Bare Fiber Type PLC Splitter Applications
13. Fiber to the point (FTTX)
14. Fiber to the home (FTTH)
15. Passive optical networks(PON, GEPON)
16. Local area networks (LAN)
17. Cable television (CATV)
18. Test equipment
Applications
- CATV;
- Active device termination;
- Telecommunication networks;
- Metro;
- Local Area Networks;
- Data processing networks;
- Test equipment;
- Premise installation;
- Wide Area Networks
Types
1. Basic type PLC splitter
2. SFF type PLC splitter
3. 900um Fan-out Type PLC Splitter
4. Cassette type PLC splitter Module
5. Rack type PLC splitter Module
6. Tray assembly PLC splitter Module
7. Flat Quick-Connect Termination Type PLC Splitter Module
Connector type :
| connoctor type | SC, ST, FC, LC, MU, MTRJ, E2000 ,MPO/MTP,SMA.... |
| Cables | PVC/LSZH ,OM1,OM2,OM3,OM4, Plenum(OFNP) , Armored |
| Color | yellow,gray,sky bule ,orange,white,bla |

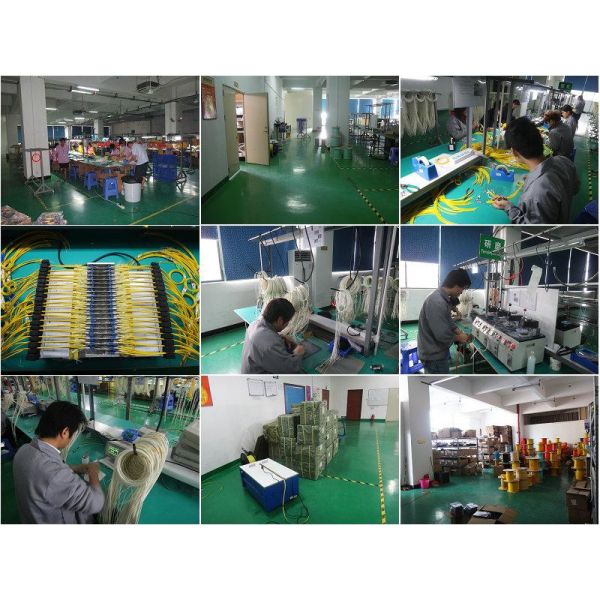

Our production department :
Test :
Quality control :
Packing :
- Packaging : bags&caron box
- Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another
- preferred carrier, please notify us in advance.
- FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
- DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
Delivery :
Payment :
contact :
