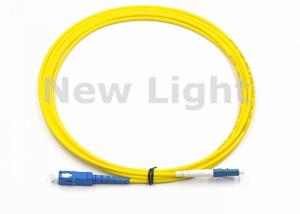

Telecom LC TO SC Single Mode Fiber Patch Cable With High Temperature Stability

Name: Telecom LC TO SC Single Mode Fiber Patch Cable With High Temperature Stability
Brand: NewLight
Price: 0.1 USD

Wholesale Telecom LC TO SC Single Mode Fiber Patch Cable With High Temperature Stability from china suppliers

Brand Name : NewLight

Certification : ISO ,ROSH

Place of Origin : China

MOQ : 1~100000

Price : 0.1~100

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 1000000

Delivery Time : 7 working days

Packaging Details : 1 pcs per pack

Name : fiber optic cable LC SC

Diameter : 2.0mm

Model : Single

Connector : LC-SC

Color : Yellow

Length : 1 meter

Contact Now

LC UPC to SC UPC Simplex 2.0mm PVC(OFNR) 9/125 Single Mode Optical Fiber Patch Cable

Description:

Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.

Characteristics:

1. Simplex and duplex connector available

2. High precision of mechanical dimensions.

3. Good exchange ability and good durability;

4. Low Insertion Loss, High temperature Stability and Good exchangeability.

5 Fan-out Available, Pigtail Available, Various

Boot(cable) Size Available

Specification:

Connector	LC to SC	Jacket OD	2.0mm
Fiber Mode	9/125µm	Jacket Color	Yellow
Polish	UPC to UPC	Wavelength	1310/1550nm
Fiber Type	Simplex	Jacket Material	PVC
Insertion loss	≤0.3dB	Interchangeability	≤0.2dB
Return loss	≥50dB	Vibration	≤0.2dB
Operating temperature	-40~75℃	Storage temperature	-45~85℃
Polarity	A(Tx) to B(Rx)	Fiber Grade	G652D

Application:

* Optical fiber communication system

* Optical fiber test equipment

* Optical fiber access network

* Optical fiber sensor

* Optical fiber CATV system

* Optical fiber data transmission

* Local area network

Features

* Good durability

* Good exchangeability

* High temperature stability

* Low insertion loss and back reflection loss

* Superior quality standard PC/UPC/APC Polishing

* Standard: Telcordia GR-326-CORE,TIA/EIA and IEC
