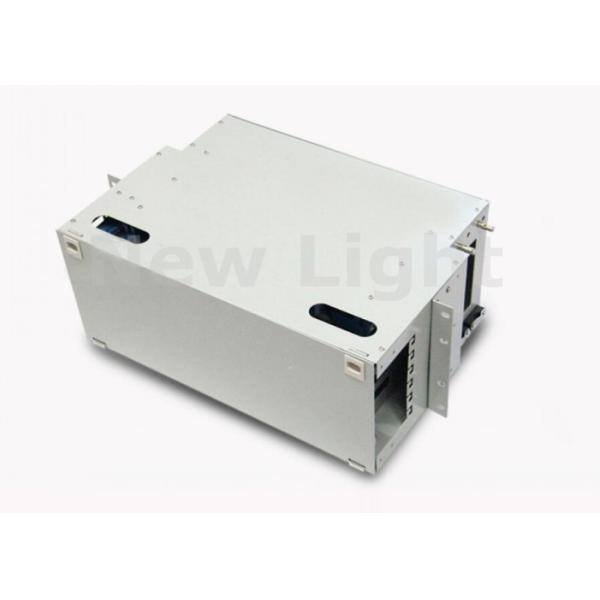

FTTX / FTTH Fiber Optic Distribution Frame 19 Inch 96 Port Fiber Patch Panel

  • 1
  • 2

Brand Name : New Light

Certification : CE

Place of Origin : China

MOQ : 1~10000

Price : 10~100

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 pcs per month

Delivery Time : within 2 weeks

Packaging Details : 1 piece per pack

Color : White

Core number : 96

Application : FTTX, FTTH odf

Fiber : Simplex,Duplex

Name : ODF optical fiber distribution frame

OEM : Available

Contact Now

Optical network use 19 inch 96 core ODF optical fiber distribution frame 96 port fiber patch panel

Applications

· Optical network

· Local area networks

· Wide area networks

Features

·19''standard structure, rack mounting,

·Built-in slide rail for easy open and close

·Available for the installation of FC,SC,ST,LC adapters.

ODF Electricity Performance:

Environment temperature -25~55 degree
Atmosphere pressure 70~106Kpa
Insulating resistance >2x104 MΩ/500VDC
Relative humidity <85%(when the temperature is below 30 ℃
Voltage resistance strength Under the effect of 15kv/DC/1min,non-puncture,and no arc-over

Specifications

Item ODF-12 ODF-24 ODF-48 ODF-72 ODF-96
Size(HxWxD)mm 430x300x1U 430x300x2U 430x300x3U 430x300x4U 430x300x6U
Cable diameter(mm) Ф5～Ф10
Adapter ports 12 24 48 72 96
Max capacity of splice 12 24 48 72 96
Suitable Adapter FC,SC,ST,LC
Materials Stainless steel+ABS
Weight(kg) 1.5 5.5 8 9.8 15

* 1U=44.45mm
