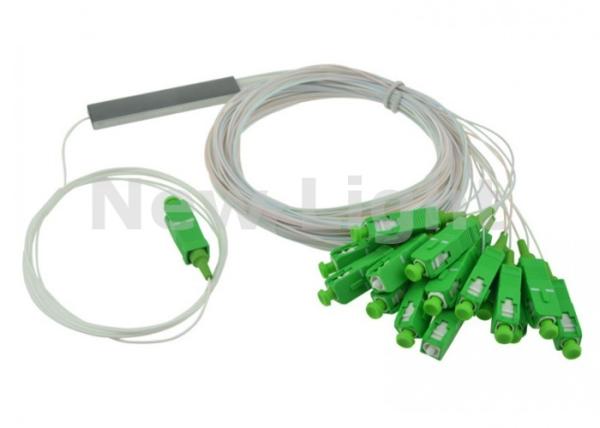

0.9mm Diameter Mini 1x16 PLC Splitter , E - Gpon Single Mode SC APC Splitter

Brand Name : New Light

Certification : ISO ,ROSH

Place of Origin : China

MOQ : 10

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 1000000

Connector : SC

Color : Grey cable,green connector

Mode : Single mode

Splitter : 1x16

Cable diameter : 0.9mm

name : fiber optic cable splitter

Price : 1~30

Packaging Details : export packing

Delivery Time : 15 working days

Contact Now

SC APC 1X16 PLC E-Gpon Single mode Fiber Optical splitter FTTH PLC Splitter ,0.9mm mini plc splitter


1. Specifications

Ports 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260~1650
Insertion Loss (dB) Max(P/S) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.8 20.5/21.0
Loss Uniformity (dB) Max 0.6 0.6 0.8 1.2 1.5 2.5
PDL (dB) Max 0.15 0.15 0.25 0.3 0.3 0.3
Return Loss (dB) Min UPC:50 APC:55
Directivity (dB) Min 55
Standard Input Fiber Bend Insensitive SM Single Fiber(ITU G.657A)
Standard Output Fiber Bend Insensitive SM Ribbon Fiber(ITU G.657A)
Standard Output Color Blue, Orange, Green, Brown, Grey, White, Red ,Black(TIA/EIA 598-B)
Max. Optical Power(mw) 300
Humidity Range(rh) 5%~85%
Operating Temperature(℃) -40~+85
Storage Temperature(℃) -40~+85
Connector Options FC/SC/LC/ST/MU
Packaging Options Bare Device*Mini Tube*ABS Module*LGX Box*19''/23'' Rack-mount

*Telcordia GR-1221-CORE&G-1209-CORE Compliant.
*Premium spec available upon request. (P/S: Premium Grade/Standard Grade)
*Typical value at +23℃ without connectors losses

Application:

* Optical LAN & WAN & CATV
* FTTH project & FTTX Deployments
* Broadband High-bit rate data transmission
* Active device terminations
* Testing instruments
* Optical fiber communication networks
* PON Networks
* Optical Signal Distribution

Parameters:

Parameters Specifications Units Remark
Channel Number 1×16
Operation Wavelength 1280 ~ 1650 nm
Insertion Loss ≤17.4 dB
Uniformity ≤1.5 dB
Polarization Dependent Loss 0.2 dB
Return Loss ≥50 dB
Directivity ≥55 dB
Fiber Type G657A
Pigtail Input: 0.9 /2.0/3.0mm Cable
Connector SC/APC N/A <0.3dB


1.2 Environmental requirements

Parameters Specifications Units Remark
Operating Temperature -40 ~ +85 °C
Storage Temperature -60 ~ +85 °C

0.9mm Diameter Mini 1x16 PLC Splitter , E - Gpon Single Mode SC APC Splitter


Product Tags:

fiber optic plc splitter



single mode fiber splitter


Wholesale 0.9mm Diameter Mini 1x16 PLC Splitter , E - Gpon Single Mode SC APC Splitter from china suppliers

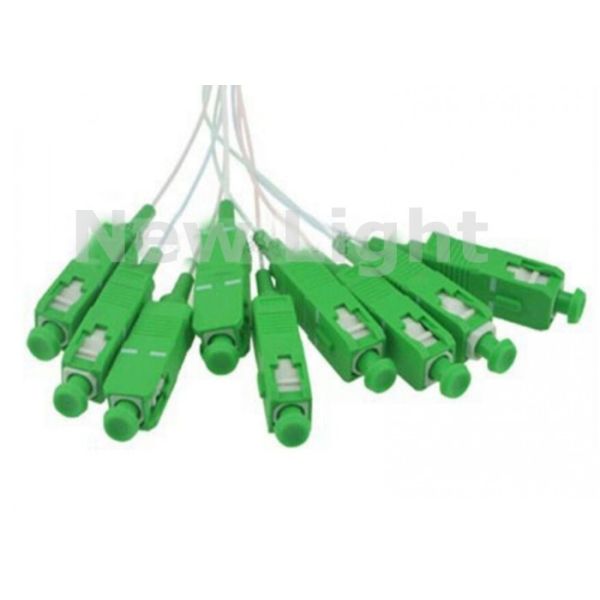

0.9mm Diameter Mini 1x16 PLC Splitter , E - Gpon Single Mode SC APC Splitter Images
