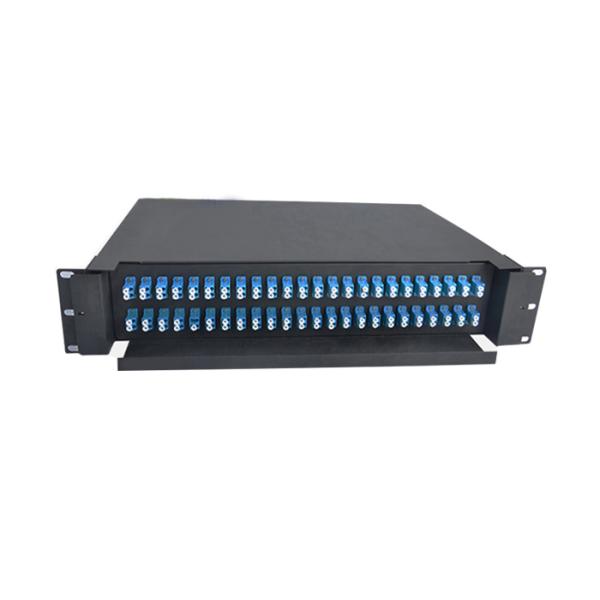

1U 12 / 24 / 48 / 96 LC SC FC ST square edged orifice SMF optic patch panel
Product description:
The module box encapsulation structure, collocation to the wiring boxes, compact structure, high density, use convenient operation.
Corning fiber optic patch panel ,Fiber optic distribution frame, fiber optic distribution Box, ODF ,fiber optic Indoor wall box, Fiber optic Outdoor wall box,Optical Terminal Box (OTB) is mainly used for connecting the indoor/outdoor optical cables, optical patch cords and optical pigtails.
Corning fiber optic patch panel ,Fiber optic distribution frame, fiber optic distribution Box, ODF ,fiber optic Indoor wall box, Fiber optic Outdoor wall box,Optical Terminal Box (OTB) is mainly used for connecting the indoor/outdoor optical cables, optical patch cords and optical pigtails.
There different models to fit for 12 core fiber,24 core fiber,36 core fiber,48 core fiber, 72 core fiber,96 core fiber,144 core fiber applications. They can be with different adapter interface including the SC, ST, FC, LC MTRJ,e2000 etc . Related fiber accessories and pigtails are optional.
Application:
1. Telecommunications subscriber loop
2. Fiber to the home (FTTH)
3. LAN/WAN
4. CATV
Features:
Used to the branch connection of optical cable termination
19'' Standard Structure, Rack mounting
Available for the installation of adaptors
Drawer Structure, Easy for Operation.
Compact design for space saving
Easy for management and operation
Standard size, light weight and reasonable structure
Mechanical and environmental characteristics:
| Projects | Parameter |
| Operating temperature | -25℃~+40℃ |
| Storage temperature | -25℃~+55℃ |
| Relative humidity | ≤85％(+30℃) |
| Air pressure | 70Kpa~106Kpa |
| Color | Black |
Dimension:
| Model | fiber quantity | Height | Dimension(LxWxH) |
| rack mount | 12 /24 /48 /96 core | 1U | 430*354.1*44mm |
