MPO / MTP cassette 8C 12C 24C 32C 48C Ribbon fiber optic patch panel
Specification:
MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow.
These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.
Offer OEM/ODM :
Various MPO connectors to meet your requirements.
Applies to 3.6mm round cable and 16C/32C Ribbon fiber.
| Items | Elite Performance | Std Performance |
| SM | MM | SM | MM |
| Insertion Loss | 16F | 32F | 16F | 32F | 16F,32F | 16F,32F |
| ≤0.35dB | ≤0.5dB | ≤0.35dB | ≤0.7dB | ≤0.7dB |
| Return Loss | ≥55dB | ≥20dB | ≥55dB | ≥20dB |
| Durability | 500times |
| Operation temperature | -40℃～+85℃ |
| Fiber Type | OS2/OM3/OM4/OM5
|
Feature :
1. 100% pre-terminated and tested in factory to ensure transfer performance
2. Rapid configuration and networking, reduce installation time
3. Supports 40G and 100G network applications
4 .Jacket material: LSZH, OFNR, OFNP available
5. Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
Description:
MPO connector comes with multifiber applies to high density in data center or telecommunication systems. It depends on the high precision metal guide pin and the high precision ferrule pin hole to ensure the optical alignment. It’s comes with SM, MM,MMLL,16C,32C, high force spring for your choice.
Application :
▪ Telecom network
▪ Ethernet network
▪ Optical communication equipment
| Mechanical Properties |
| Item | Criteria | Conformance |
| △IL After 50 Matings | MPO/MTP | ≤0.3dB | GR-1435 |
| △IL After 500 Matings | LC/SC/FC/ST | ≤0.2dB | IEC 61300-2-2 |
| Min Bend Radius (Dynamic) | 20*OD (Cable Diameter) |
| Min Bend Radius (Static ) | 15*OD (Cable Diameter) |
Compliant to International Standards:
IEC 61754-7 and GR-1435 complaint; RoHS/REACH and UL94-V0 inflammability grade complaint.
Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.
| Environment Conditions |
| Item | Criteria | Conformance |
| Operation Temperature | -40~60°C | IEC 61753-1 |
| Storage Temperature | -45~85°C |
| | | |
Product Tags:
|
|

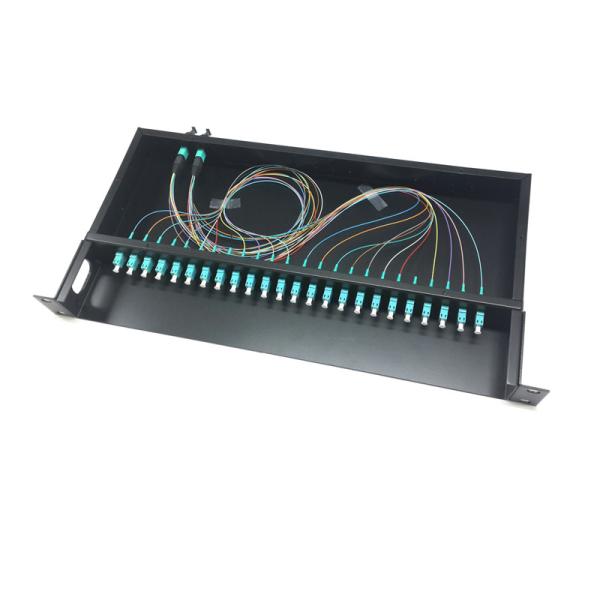

Ribbon Fiber Optic Distribution Frame MPO / MTP cassette Date center Application Images
|
